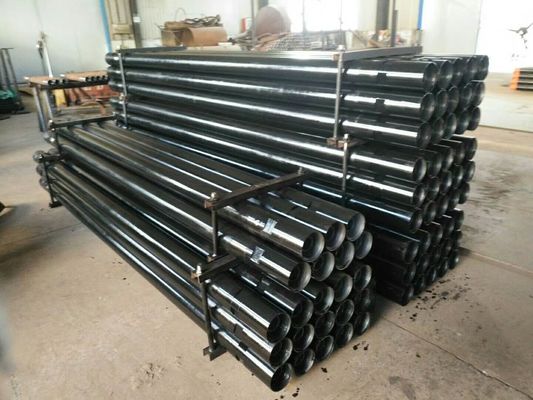

4IF Type Threads DTH Heavy Double Wall Drill Pipe 6m Length

Name: 4IF Type Threads DTH Heavy Double Wall Drill Pipe 6m Length
Brand: Langfang Baiwei Drill Co., Ltd.
Price: 362.00 USD
Availability: InStock

Tüm ürünler

HDD Drill Pipe
(49)

Dual Wall Drill Pipe
(87)

Water Well Drill Pipe
(61)

Ingersoll Rand Drill Pipe
(51)

Pipe Ramming Hammer
(39)

HDD Reamers
(42)

Hdd Bits & Blades
(22)

HDD Swivels
(25)

Pipe Bursting Equipment
(30)

Breakout Tong For Drill Pipe
(7)

Pipe Rehabilitation Equipment
(3)

Impact Moling
(3)

Portable Horizontal Drilling Machine
(1)

En iyi ürünleri

Circulation Drill Pipe 114mm Remet

Çift Duvarlı DTH Boru Tüpü 102/41mm Diametresi 4 "Remet Su Kuyu Borulaması

114mm Dış Çap Boru Yağ Kuyusu Ters Sirkülasyon Sondaj Borusu

Sertifika

Müşteri yorumları

After-sales service is always a swift response, which makes the cooperation between us very at ease. We and lang way are friends forever.

—— Samy

Langway ile uzun yıllardır işbirliği yapıyoruz. Langway'in satış müdürü Bayan Lily Gao, hem teslimat süresi hem de ürün kalitesi açısından çok iyi bir hizmet sunuyor. Bu, Çin'deki en iyi deneyimim, teşekkür ederim.

—— Satyajt

Langway'in teknolojisi çok iyi, inşaat süresini iyileştiriyor, bizim için inşaat maliyetini düşürüyor ve bizim için daha fazla yerel övgü sağlıyor.

—— Hamzepour

Ben sohbet şimdi

4IF Type Threads DTH Heavy Double Wall Drill Pipe 6m Length

Büyük resim : 4IF Type Threads DTH Heavy Double Wall Drill Pipe 6m Length

Ürün ayrıntıları:

Menşe yeri:	Çin
Marka adı:	Longway
Sertifika:	ISO9001

Ödeme & teslimat koşulları:

Min sipariş miktarı:	1
Fiyat:	pazarlık edilebilir
Ambalaj bilgileri:	Müşterilerin ihtiyaçlarına göre
Teslim süresi:	Farklı ürün ve envantere göre ayarlanacak 20-30 iş günü
Ödeme koşulları:	T/T
Yetenek temini:	Farklı ürün ve envantere göre ayarlanacak 20-30 iş günü

İletişim

4IF Type Threads DTH Heavy Double Wall Drill Pipe 6m Length

Açıklama

isim:	Çift Cidarlı Sondaj Borusu	Tip:	Sondaj Borusu
Renk:	Rica etmek	Avantaj:	Yüksek kalite ve fabrika fiyatı
modeli:	WB114/65	Diğer tüpün dış çapı (mm):	114
Diğer bağlantı çapı (mm):	65	Eklemin dış dianeteri (mm):	156
Konu türü:	4IF	Etkili uzunluk (m):	6
Vurgulamak:	41F Threads Double Wall Drill Pipe , 6m Length Double Wall Drill Pipe , 41F Threads Heavy Wall Drill Pipe

41F Type Of Threads Or Customized As Required Double Wall Drill Pipe

Product Description

In order to realize the reverse circulation drilling process of the through-the-hole DTH hammer, the matching drilling tool system mainly includes a double-wall drill rod. In addition to the through-the-hole DTH hammer used to realize the impact effect, a reverse circulation drill bit and a double channel are also required Faucet, and other auxiliary tools. The double-arm drill pipe is one of its core components

Double wall drill pipe

Type	O.D.of the outer tube (mm)	I.D.of the inner tube (mm)	Outer dianeter of joint (mm)	Type of threads	Effective length (m)
WB114/65	114	65	156	41F	6
WB127/76	127	76	162/168	41/21F	6 , 9.5
DB127/76	127	76	184	51/2FH	9.5
WB140/88	139.7	88	184	51/2FH	6,9.5
WB219/130	219	130	240	Factory standard	6,9.5
WK76/32	76	32	78	3" Remet	3
WK102/41	102	41	103	4" Remet	3 , 6
WK114/52	114.3	52	116	4 1/2" Remet	3 , 6
WK114/38	114.3	38	114.3	4 1/2" Metzke	3 , 6
WK114/50	114.3	50	114.3	4 1/2" Remet	3 , 6
WP50/20	50	20	50		1 , 1.5
WP73/35	73	35	73		1 , 1.5
WP89/40	89	40	89		1 , 1.5

Drill pipe usage notes:

1.New drill pipe should be pasted thread oil before connection

2.Make up and break at least 3 times before drilling

3.Hard bending and plastic coating can be processed according to costumer special requirement.

water well tubing

4IF Type Threads DTH Heavy Double Wall Drill Pipe 6m Length 0

FAQ

Q: Are you trading company or manufacturer ?
A: We are factory.

Q: How long is your delivery time?
A: Generally it is 7-30 days if the goods are in stock. or it is 30-60 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample need to pay the cost of products and freight.

Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
